Specifications

We offer 14 different sizes of septic tanks. Depending on the location of your septic tank and how many people are in your household, we have a septic tank to suit to your requirements. Our current septic tank specifications are shown in the following table:

Capacity (Litres) Code Type Weight (Kg) Length (mm) Diameter(mm) Inlet (mm) Outlet (mm)
Below 3000 litres tanks (2 options)

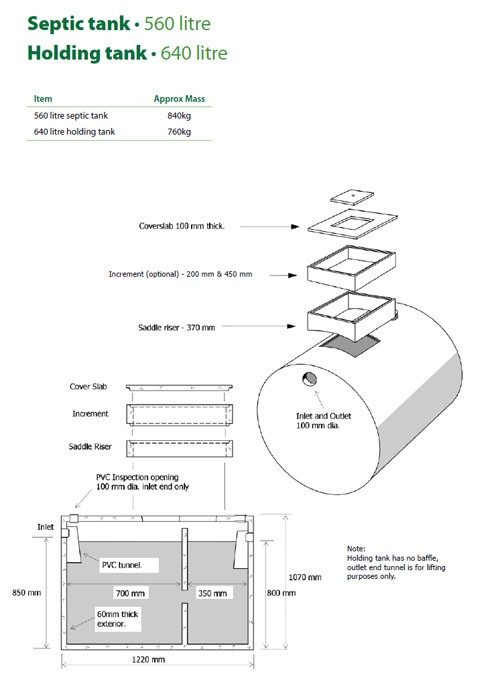

560 SEP00560 Horizontal 840 1220 1070 850 800

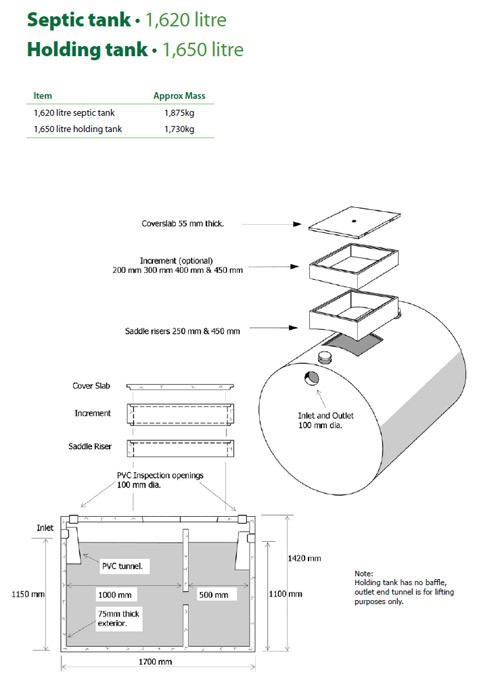

1620 SEP01620 Horizontal 1875 1700 1420 1150 1100
3000 litre tanks (4 options)
3000 SEP0300050 50mm wall 2000 2286 1525 1295 1245

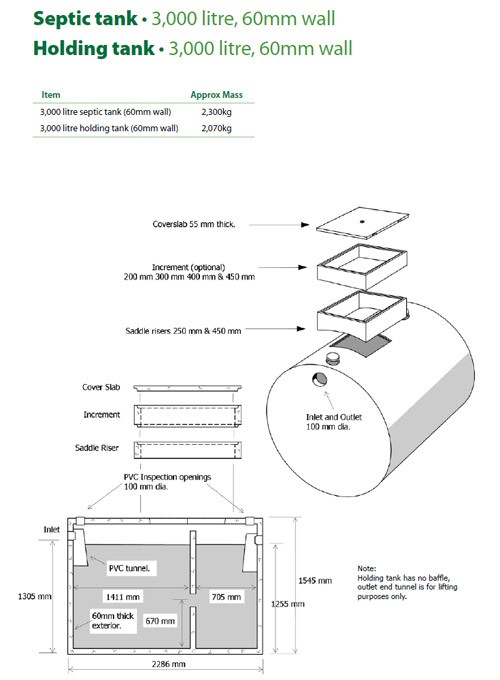

3000/Hold SEP0300060 60mm wall 2300 2286 1545 1305 1255

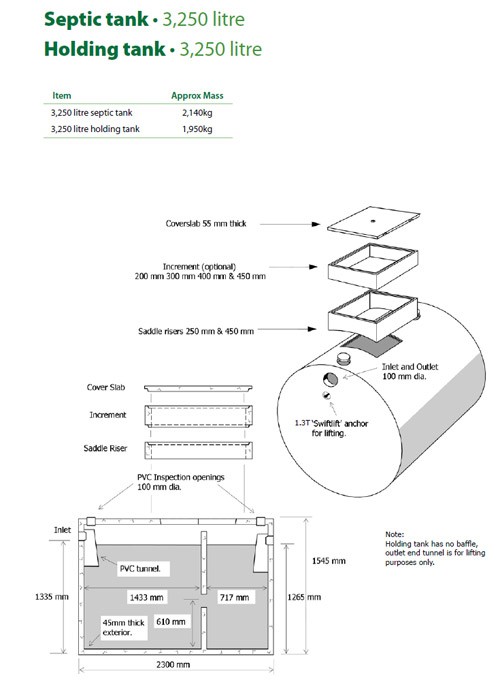

3250/Hold SEP03250 Horizontal 2140 2300 1545 1335 1265
Ri-Scape 3,300 Ri-Scape 3,300 Horizontal 3200 2300 1770 1550 N/A
4000 litre tanks (2 options)
4300/Hold SEP04300 Horizontal 2550 2300 1770 1550 1490
Ri-Scape 4,000 Ri-Scape 4,000 Horizontal 3700 2300 1950 1630 N/A
5000 litre tanks (4 options)
5000/Hold SEP05000 Horizontal 3000 2300 1950 1630 1580
5000 SEP05000VD Vertical 5400* High 2240* 1930 2070 2020
5000 SEP05000 Vertical 4600* High 2240* 1930 2070 2020
5000 SEP05000VH Vertical 4500* High 2240* 1930 2070  2020
8000 litre tanks (3 options)
8000 SEP08000 Vertical 6600* High 2460* 2440 2250 2200
8000 SEP08000H Vertical 6500* High 2460* 2440 2250 2200
8000 SEP08000D Vertical 7700* High 2460* 2440 2250 2200
12,000 litre tanks (3 options)
12000 SEP12000 Vertical 8420* High 2440* 2870 2250 2200
12000 SEP12000D Vertical 9840* High 2440* 2870 2250 2200
12000 SEP12000H Vertical 7300* High 2440* 2870 2250 2200
20,000 litre tanks (3 options)
20000 SEP20000 Vertical 12510* High 2740* 3450 2550 2500
20000 SEP20000D Vertical 14620* High 2740* 3450 2550 2500
20000 SEP20000H Vertical 10600* High 2740* 3450 2550 2500
* Height and weight depend on lid thickness.

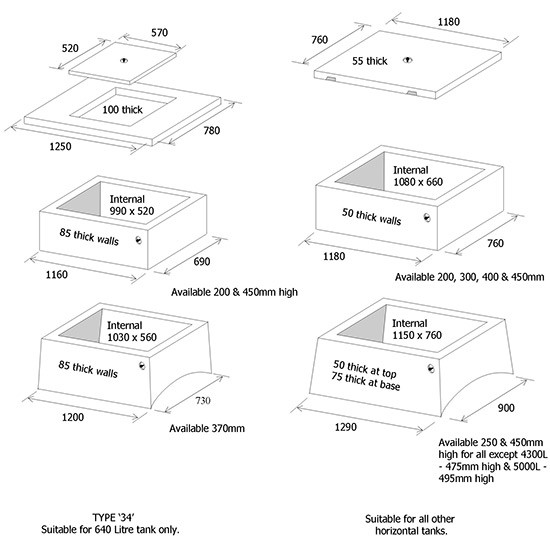

Saddle risers, increments & coverslabs
  • To suit all horizontal septic and holding tanks
  • Coverslabs suitable for pedestrian traffic only
  • Radius of saddle riser varies to suit tank
  • Each component fitted with 1.3t ‘Swiftlift’ anchors for lifting

Glass reinforced concrete lightweight slabs & risers
  • Specifically designed to be used in difficult or existing areas where truck access is not available to lift normal concrete products
  • Suitable for pedestrian traffic only
Slab lid in normal concrete to suit weight GRC saddle & riser (2 part lid)
  • Approx weight 50kg each
  • Can be lifted with 1.3 tonne Swiftlift claws

Glass reinforced concrete lightweight extension riser for saddles
  • Approx weight 60kg
  • Sizes for extensions 290mm and 380mm
  • Actual 400mm and 310mm with rebate of 20mm
  • Suitable for 1,620, 3,000 and 3,250 litre septic tanks

Glass reinforced concrete lightweight saddle riser
  • Approx weight 56kg

ATSIC coverslab • 3,000 litre septic tank
Capacity (Litres) Code Type Weight (Kg) Length (mm) Diameter(mm)
ATSIC coverslab
3,000 litre septic tank CCA2717150 - 1700 2700L x 1745W x 150H
3,000 litre septic tank CCA12009LD - 340 1270L x 900W x 150H
Precast pump chamber
Capacity (Litres) Code Type Weight (Kg) Length (mm) Diameter(mm) Inlet (mm) Outlet (mm)
Precast pump chamber
622 SEPPCC Pump chamber 1264 1160L x 750W x 1450H (with lid) 1250 none

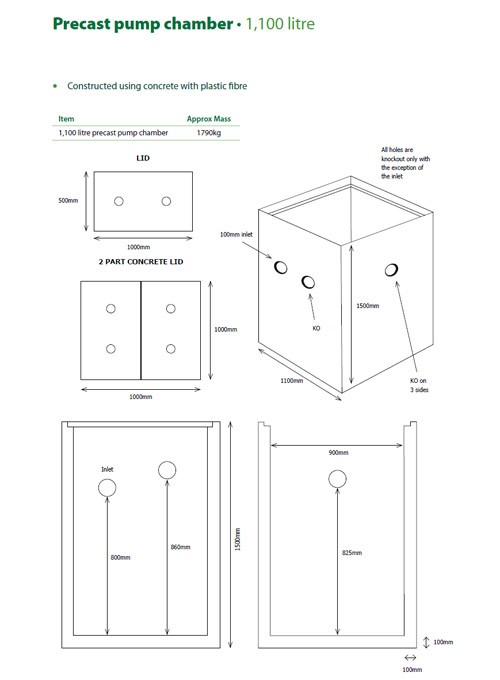

1100 SEPPCC11 Pump chamber 1790 1100L x 1100W x 1500H 2550 2500
Distribution Box
      • Precast reinforced concrete box fitted with 100mm diam PVC inlet and outlet collars
      • Box and increments fitted with ‘Swiftlift’ anchors for lifting
      • Approved by the SA Health Commission
Code Type Weight (Kg) Length (mm) Diameter(mm) Inlet (mm) Outlet (mm)
Distribution Box
Distribution Box SEPDIS Vertical 150 700L  400W 150 115
Polytrench plastic effluent trench
 Polytrench Code Type Height(mm) Length (mm)  Diameter(mm)
Polytrench plastic effluent trench
 Polytrench plastic effluent trench SEPPOL101 Horizontal  330H 1000L  450W
PVC effluent diverter junction
  • Cost effective: no extra fittings for line up or I.O.
  • Light weight: no sagging lines
  • Standard 45 degree ‘Y’ size and style for quick, easy installation
  • The correct operation is visible after installation
  • Riser and switching lever easily cut to suit depth of job
  • Available with left and right hand diversion
Code
PVC diverter junction
SEPDIV
Induct vents
Code
Induct vents
CCA12121250

DOWNLOAD PRODUCT CATALOGUE
