Tanks
We offer 14 different sizes of septic tanks. Depending on the location of your septic tank and how many people are in your household, we have a septic tank to suit to your requirements. All horizontal tanks are engineered to a maximum depth of 900mm. Our current septic tank specifications are shown in the following table:
Capacity (Litres) | Code | Type | Weight (Kg) | Length (mm) | Diameter (mm) | Inlet (mm) | Outlet (mm) |
---|---|---|---|---|---|---|---|
Below 3000 litres tanks (1 option) | |||||||
1620 | SEP01620 | Horizontal | 1875 | 1700 | 1420 | 1150 | 1100 |
3000 litre tanks (3 options) | |||||||
3000 | SEP0300050 | 50mm wall | 2000 | 2286 | 1525 | 1295 | 1245 |
3000 | SEP0300060 | 60mm wall | 2300 | 2286 | 1545 | 1305 | 1255 |
3250 | SEP03250 | Horizontal | 2140 | 2300 | 1545 | 1335 | 1265 |
4300 litre tanks (1 option) | |||||||
4300/Hold | SEP04300 | Horizontal | 2550 | 2300 | 1770 | 1550 | 1490 |
5000 litre tanks (4 options) | |||||||

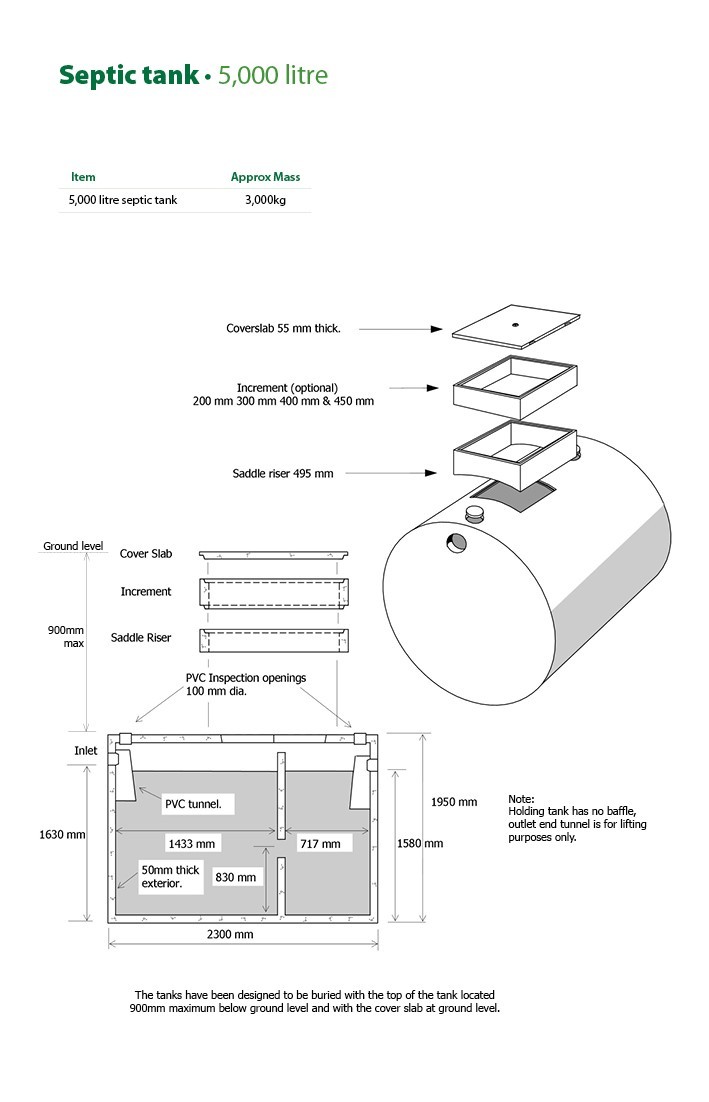

5000/Hold | SEP05000 | Horizontal | 3250 | 2340 | 1950 | 1630 | 1580 |
5000 | SEP05000VD | Vertical | 5400* | High 2240* | 1930 | 2070 | 2020 |
5000 | SEP05000 | Vertical | 4600* | High 2240* | 1930 | 2070 | 2020 |
5000 | SEP05000VH | Vertical | 4500* | High 2240* | 1930 | 2070 | 2020 |
8000 litre tanks (3 options) | |||||||
8000 | SEP08000 | Vertical | 6600* | High 2460* | 2440 | 2250 | 2200 |
8000 | SEP08000H | Vertical | 6500* | High 2460* | 2440 | 2250 | 2200 |
8000 | SEP08000D | Vertical | 7700* | High 2460* | 2440 | 2250 | 2200 |
12,000 litre tanks (3 options) | |||||||
12000 | SEP12000 | Vertical | 8420* | High 2440* | 2870 | 2250 | 2200 |
12000 | SEP12000D | Vertical | 9840* | High 2440* | 2870 | 2250 | 2200 |
12000 | SEP12000H | Vertical | 7300* | High 2440* | 2870 | 2250 | 2200 |
20,000 litre tanks (3 options) | |||||||

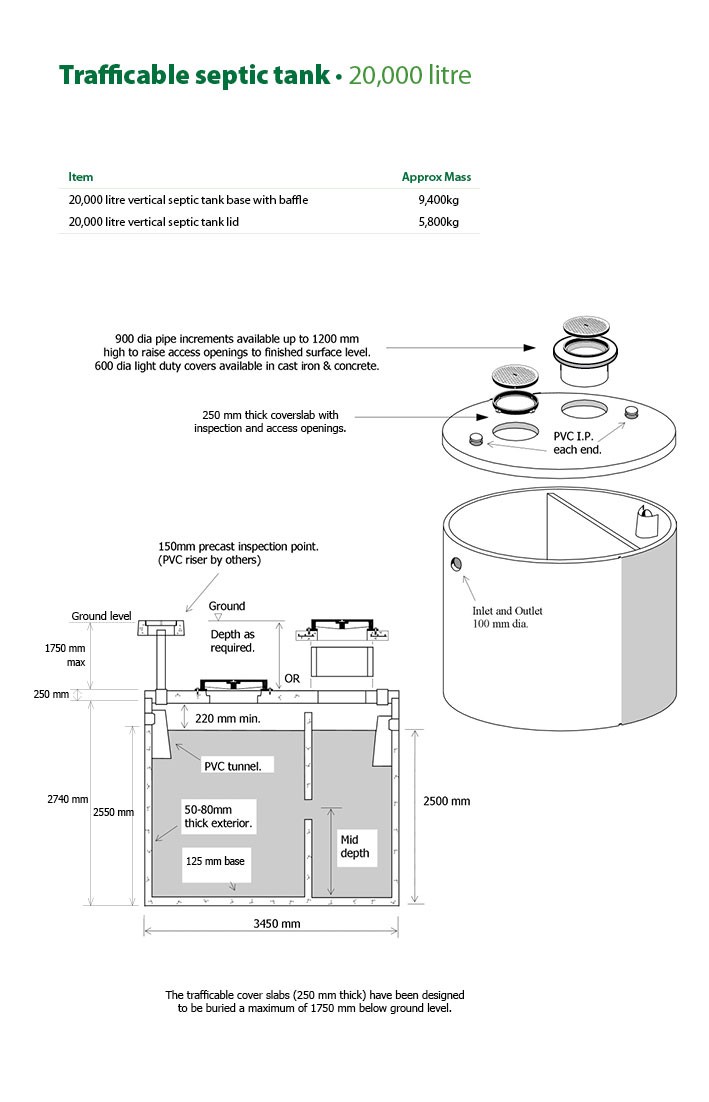

20000 | SEP20000 | Vertical | 12510* | High 2740* | 3450 | 2550 | 2500 |
20000 | SEP20000D | Vertical | 14620* | High 2740* | 3450 | 2550 | 2500 |
20000 | SEP20000H | Vertical | 10600* | High 2740* | 3450 | 2550 | 2500 |
